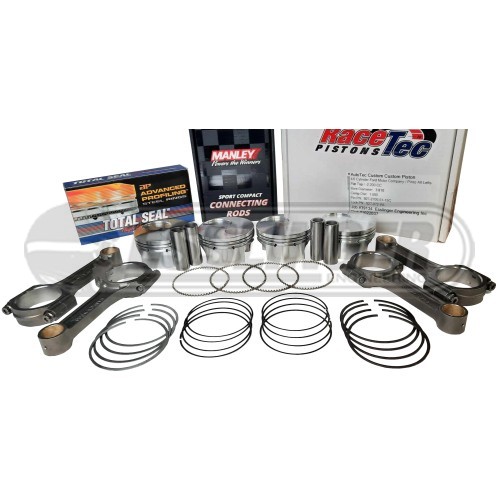

FORD 2500 SOHC 5.7" Long Rod & Piston Kit (3.810")
Not sure it fits your engine? Call 909-539-0544 or send us a message.
Ships by UPS or FedEx. Rates are shown at checkout.
Please confirm stock on large orders. Availability can change quickly.

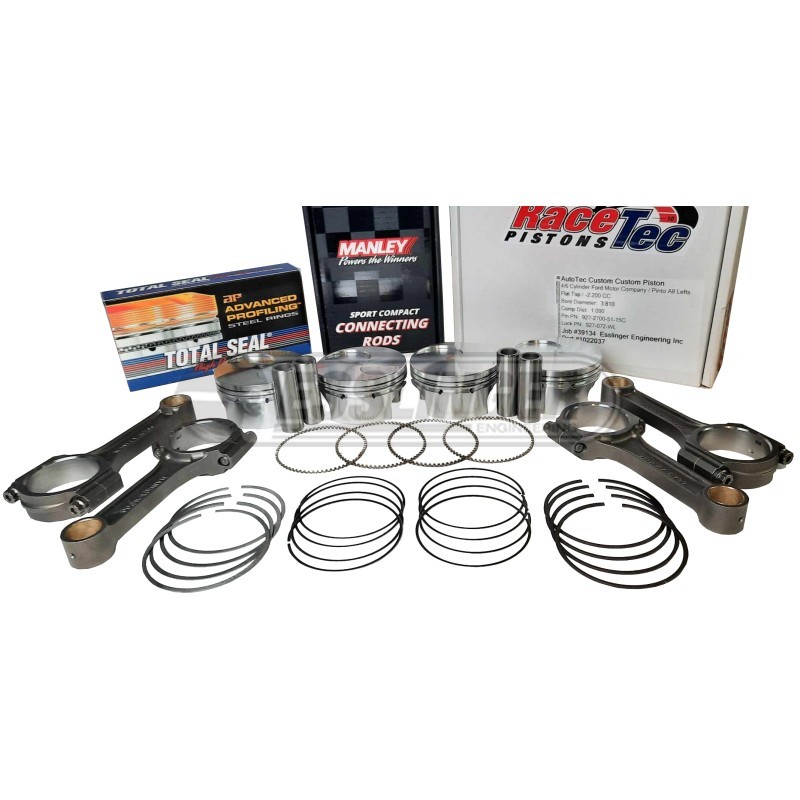

Our most popular rod & piston combination for the Ford 2300 & 2.5L engines with the 2.5L crankshaft!
Rods: Manley Sportsmaster 5.7" w/ ARP bolts
Pistons: Esslinger spec custom made for us by Racetec Pistons with .960" compression height, and .927" wristpins
Rings: Nitrided steel 1.2mm top rings, Napier 1.5mm second rings, and 3mm low drag oil rings
Bore size options:
3.810" (+.030" over)
This rod and piston kit is designed for normally aspirated engines using OEM heads, or heads with OEM valve locations like the Esslinger Aluminum D-port and Esslinger SVO heads. Not for use with turbo or superchargers. Max recommended rpm for this kit is 8200rpm. We have sold hundreds of this kit over the years, it is super reliable and makes 12-15hp more than a 2300 engine with the same rods and bore size.
