2.3L Ecoboost Shortblocks

$4,431.10

Choose from 3 different option packages to suit your specific needs.  Our shortblocks have an actual displacement of 2264cc (2.3L) and are assem..

Available Options

Tags: 2.3L Ecoboost Shortblocks, 2.3L Ecoboost Shortblocks, Assembled Shortblocks

Choose from 3 different option packages to suit your specific needs.  Our shortblocks have an actual displacement of 2264cc (2.3L) and are assembled by the same technicians that build our race winning engines. We take the same level of attention to detail and care when assembling each shortblock. Each shortblock package has parts picked out to work the best in each given application. Check out the parts lists. and accompanying machinework for each of the options below to help you choose which shortblock will fit your needs the best!  All of our Ecoboost shortblocks are based around upgrading from the weak 2.3L Ecoboost block to the much stronger 2L TS block, and filling it with a keyed and heat treated crank, stronger & longer rods, and our Esslinger spec JE pistons.

Options:

Stage 2 (good for engines up to 500whp)

Stage 3 (good for engines up to 600whp)

Stage 4 (good for engines over 600whp)


As with all our shortblock, and complete engine offerings, we start with a brand new block, inspect it for imperfections, dimensions, or damage, before completing the following modifications:

Tap front and rear oil galleys for -8AN O-ring plugs

Tap intake side oil galley for -4AN O-ring plug

Surface Block deck square to crank centerline

Surface Girdle as needed

Install new main girdle hardware (Options: OEM main bolts or ARP Main Stud Kit)

Align hone main tunnel to size

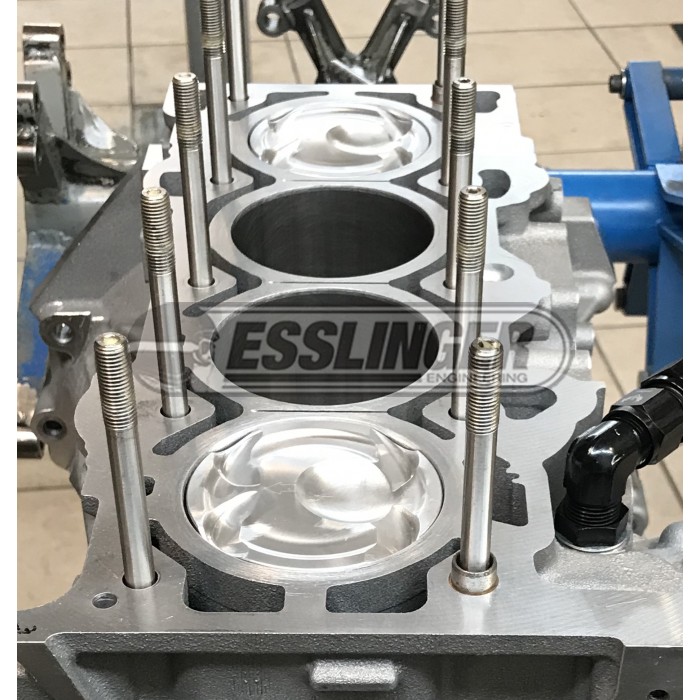

Install a Tool Steel head stud kit (10mm for Stage 2 & 3, and 12mm for Stage 4) and torque plate (headstud kit hardware available separately)

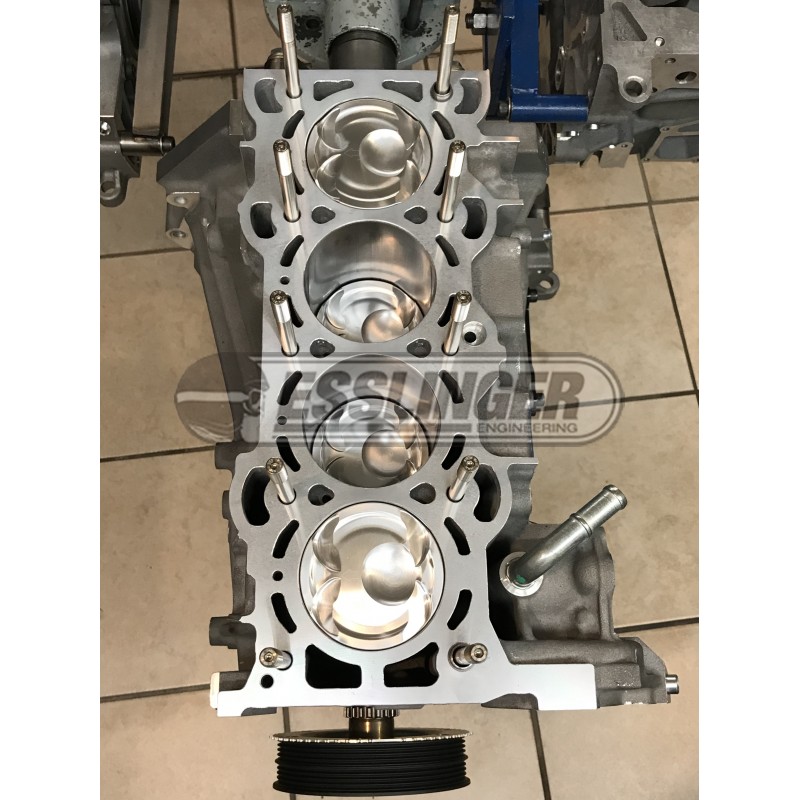

Torque Plate Hone cylinders to the correct surface finish & clearance for our 3.447" (87.55mm) bore 2.3L Ecoboost pistons

Debur all interior and exterior surfaces

Preliminary wash to remove machining chemicals & chips (not to replace final wash before assembly)

Measure all critical dimensions as Quality Control (bore, deck height, main housing bore dia., & cylinder surface finish)

Install new heater hose elbow above water inlet (** We can plug this port on engines without a thermostat**)

Includes all new head and bellhousing

Includes new piston squirters

Includes all new threaded oil galley plugs

Includes custom fit Tri-metal race series main & rod bearings

Includes keyed, heat treated, and balanced 94mm forged crank

Includes longer H-beam (Stage 2) or Billet I-beam rods (Stage 3 & 4)

Includes custom Esslinger-spec JE pistons with upgraded HD wristpins

Includes custom Esslinger-spec Total Seal AP Gapless & napier ring sets

Includes New Main Bolts (Stage 2 & 3) or ARP Main Stud Kit (Stage 4)

Includes keyed timingchain gear

Includes keyed crank damper


*** Shortblocks are assembled on a per-order basis and as such require 2-4 weeks lead time for completion ***
