Ford 2300 SOHC 5.7" long rod & piston kit
- Brand: JE Pistons
- Product Code: Ford 2300 SOHC 5.7" long rod & piston kit
- Availability: In Stock
Our most popular rod & piston combination for the Ford 2300 SOHC engines with the 2.3L crankshaft!Rods: Manley Sportsmaster 5.7" w/ ARP boltsPisto..
Our most popular rod & piston combination for the Ford 2300 SOHC engines with the 2.3L crankshaft!
Rods: Manley Sportsmaster 5.7" w/ ARP bolts

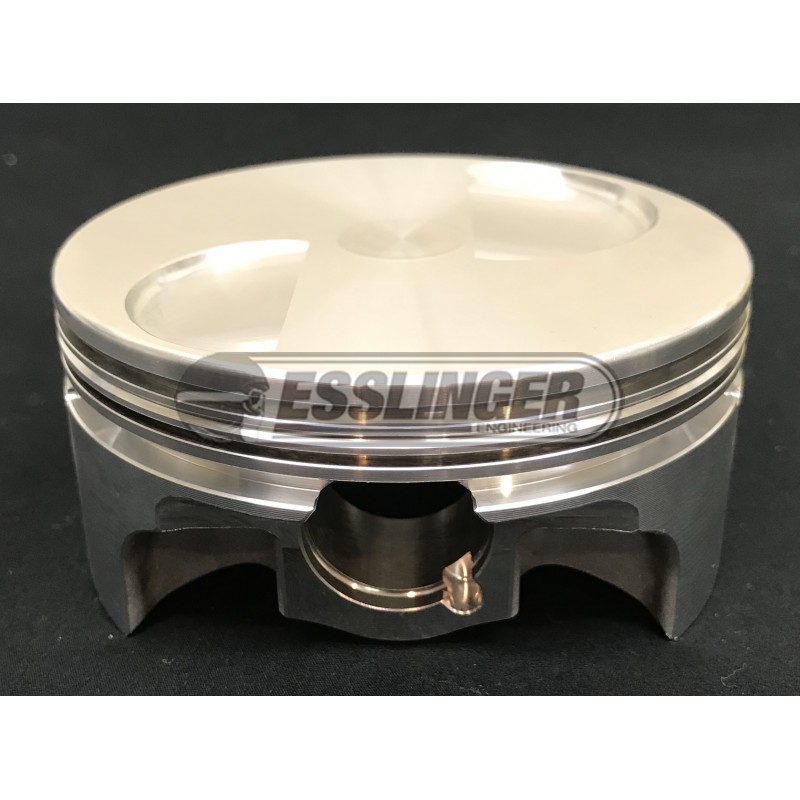

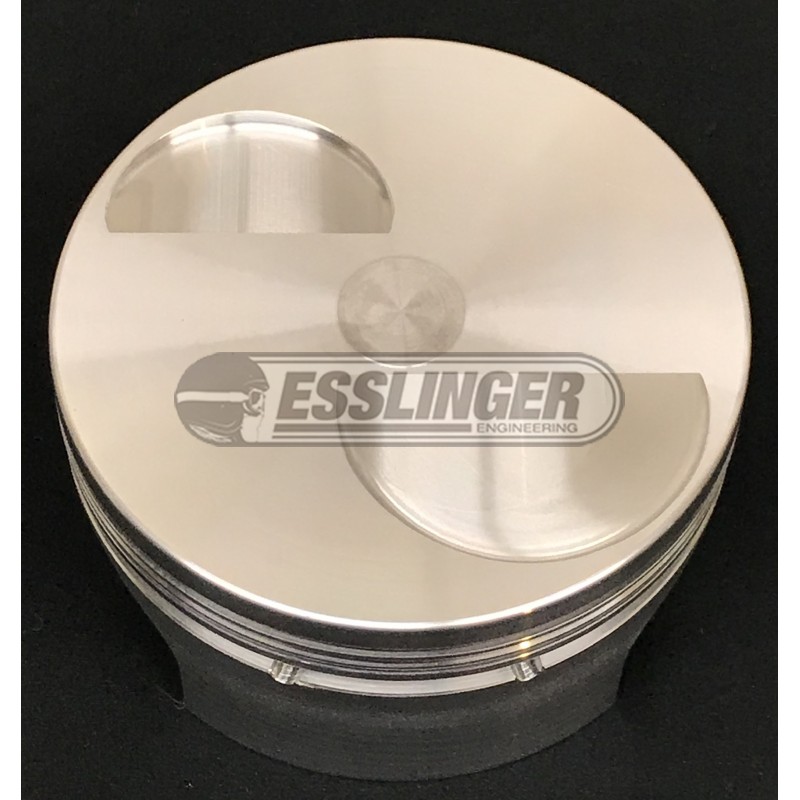

Pistons: Esslinger spec custom made for us by Racetec Pistons with 1.090" compression height, and .927" wristpins
Rings: Nitrided steel 1.2mm top rings, napier 1.5mm second rings, and 3mm low drag oil rings
Bore size options:
3.810" (+.030" over)
3.820" (+.040" over)
This rod and piston kit is designed for normally aspirated engines using OEM heads, or heads with OEM valve locations like the Esslinger Aluminum D-port and Esslinger SVO heads. Not for use with turbo or superchargers. Max recommended rpm for this kit is 8400rpm. We have sold thousands of this kit over the years, it is super reliable and makes great power on a 2300 engine. The 1/2" longer rods reduce cylinderwall loading (reduced friction), and allow the use of way lighter pistons to reduce the reciprocating weight for a faster revving engine!

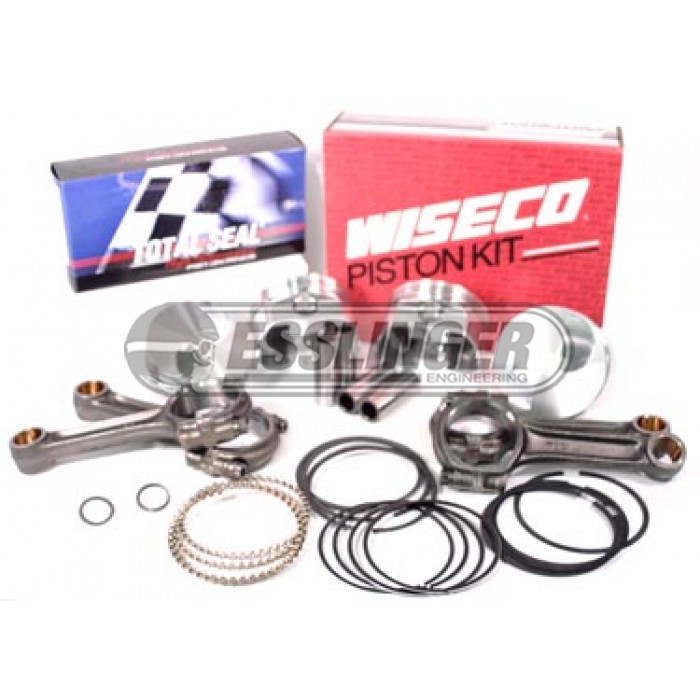

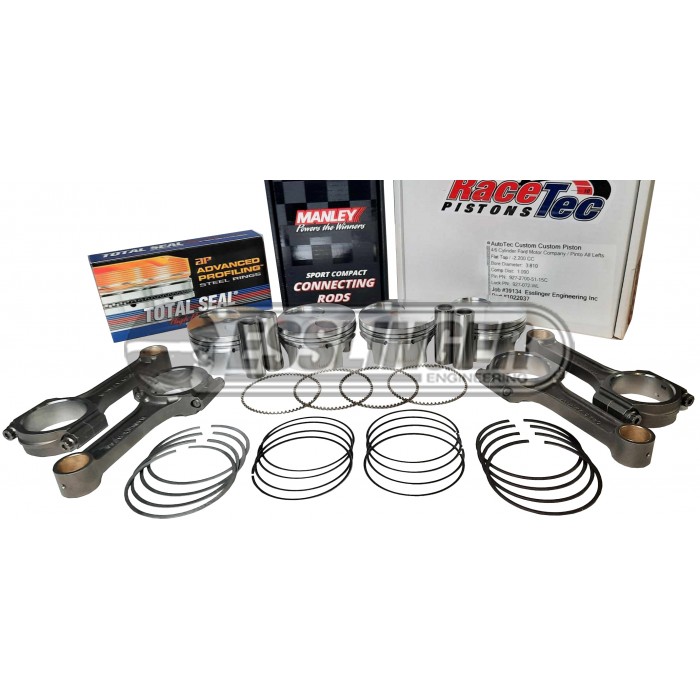

* Picture shown of complete kit is not representative of the parts included in the kit. *
