2300 SOHC 5.7" Rod Pistons (3.820" Bore)

$545.99
  • Brand: Racetec Pistons
  • Product Code: 2300 SOHC 5.7" Rod Pistons (3.820" Bore)
  • Availability: In Stock

Forged Ford 2300 SOHC flat-top 5.7" rod pistonsPiston Specs:3.820" bore (+.040" over)Compression Height: 1.090"Wristpin diameter: .927"Use with 1.2, 1..

Tags: Autotec Ford 2300 SOHC 5.7 Rod Forged pistons, Ford 2300 SOHC 5.7 Rod Forged pistons, Pistons

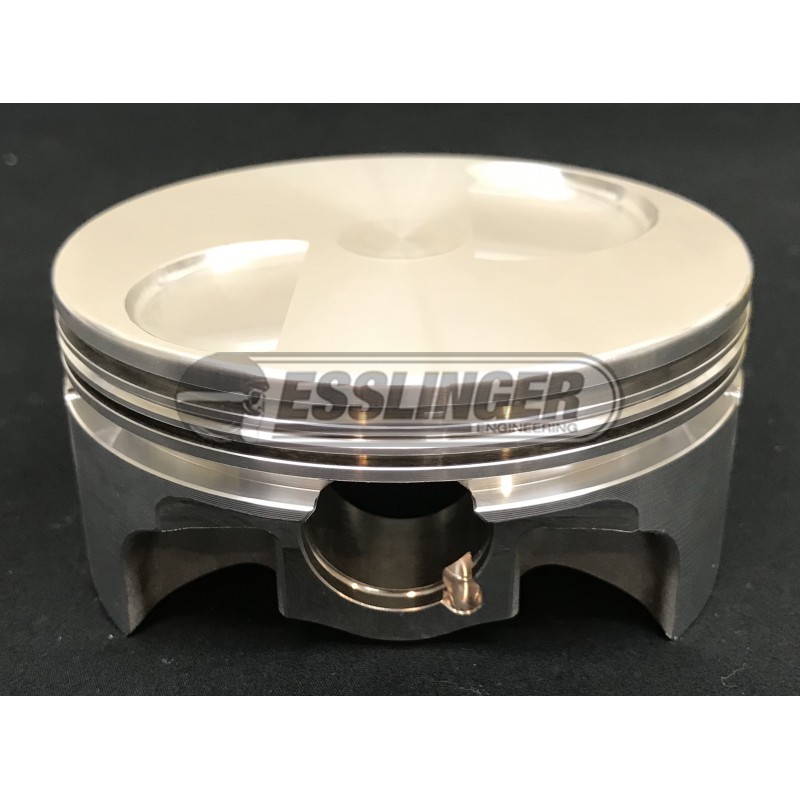

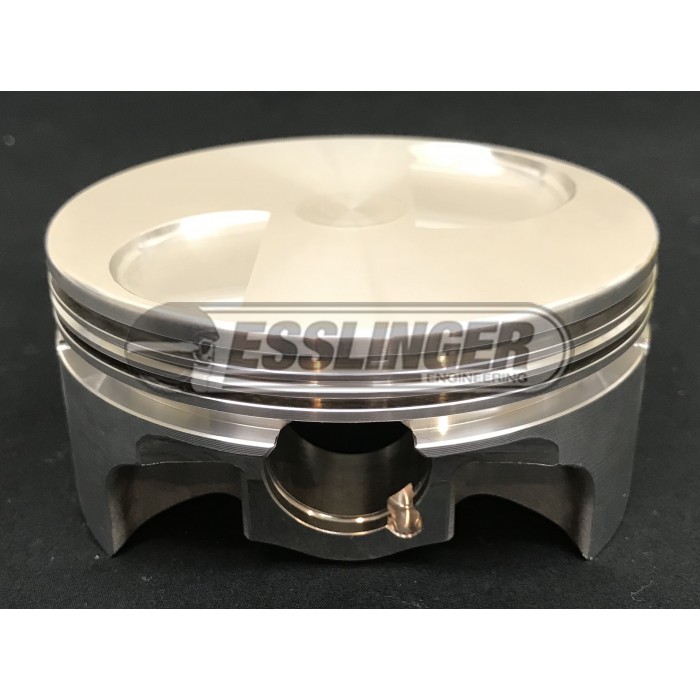

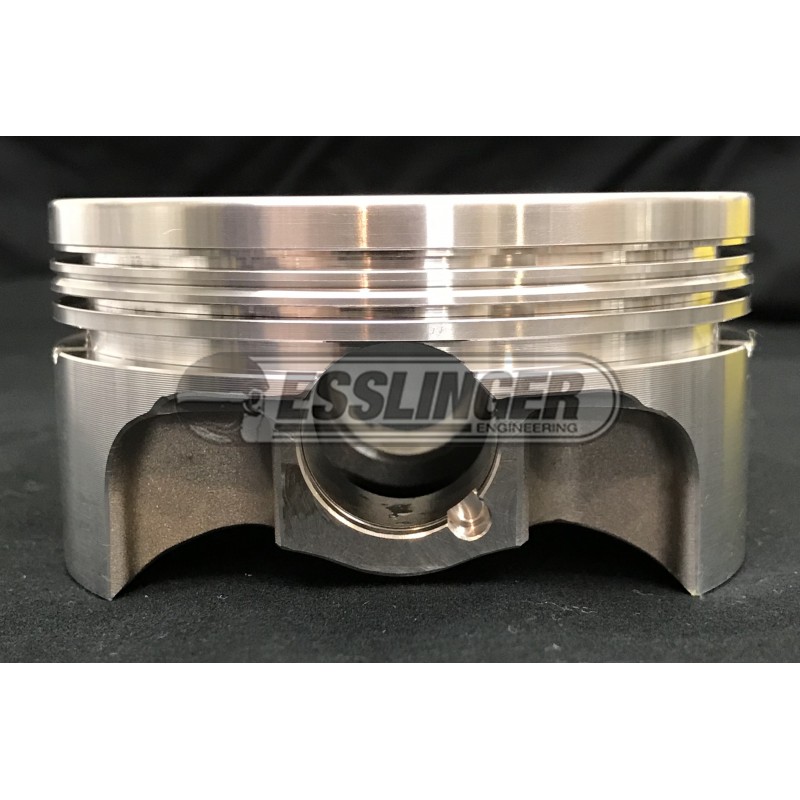

Forged Ford 2300 SOHC flat-top 5.7" rod pistons

Piston Specs:
3.820" bore (+.040" over)
Compression Height: 1.090"
Wristpin diameter: .927"
Use with 1.2, 1.5, 3mm rings (available separately here)

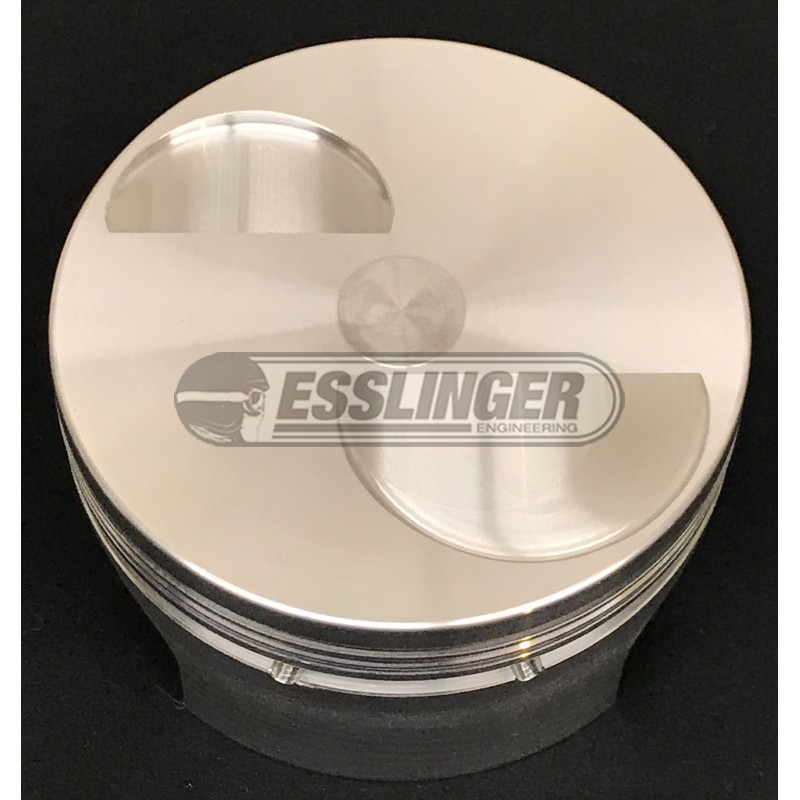

Valve Reliefs:
-2.5cc .075" deep Valve Reliefs fit up-to 1.890" intake valves and 1.590" exhaust valves.
Valve relief locations are cut to suit use with OEM Ford, Esslinger Aluminum D-port, and Esslinger SVO heads.


These pistons are custom made for us to our specs by Racetec Pistons.
