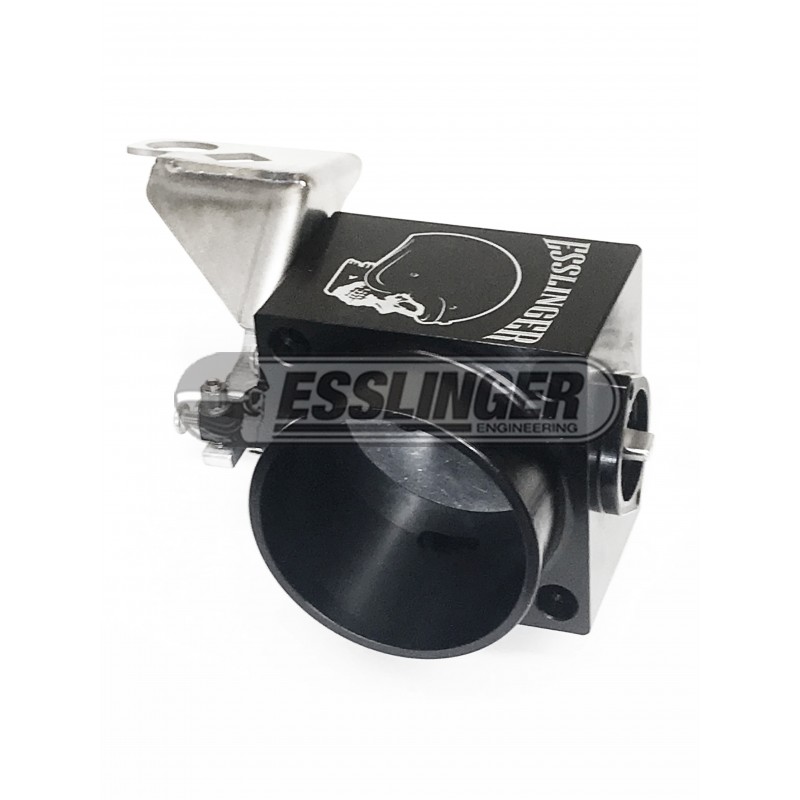

Billet 62mm 2.5L Swap Cable Throttlebody
- Brand: Esslinger Engineering
- Product Code: Billet 62mm 2.5L Swap Cable Throttlebody
- Availability: In Stock
These billet throttle bodies were designed to fit a niche market and maximize performance. When converting a Focus to a 2.5L Duratec, you have t..
These billet throttle bodies were designed to fit a niche market and maximize performance. When converting a Focus to a 2.5L Duratec, you have to convert the engine from DBW (drive by wire) to CAT (cable actuated throttle). In the past people only had two options, either you had to adapt a 2L/2.3L Focus Duratec intake manifold onto the 2.5L engine with an aluminum adapter/ spacer, or adapt the 2.3L Focus Duratec throttle body to the 2.5L engine. Both of these options result in a functional option, but restrict performance of the 2.5L engine. The 2.5L intake manifolds feature larger diameter runners that make more power than any of the 2L/ 2.3L manifold options. Previously in order to run a cable actuated throttle body on a 2.5L manifold (bolt patterns are different), you had to run a throttle body adapter/ spacer. The drawback to running the OEM cable actuated throttle body is that these throttle bodies have a restrictive eyebrow built in that is designed to mellow out the off-idle throttle response but unfortunately also comes at the expense of much needed airflow at wide open throttle! Also, an external idle air control (IAC) has to be added to the 2.5L engine because the 2.5L used drive by wire to modulate idle rpm but the Focus Duratec engines use a IAC to modulate the idle. When using the throttle body adapter you have to modify the throttle cable bracket and it's a tight fit for the intake tube due to the added thickness of the adapter.

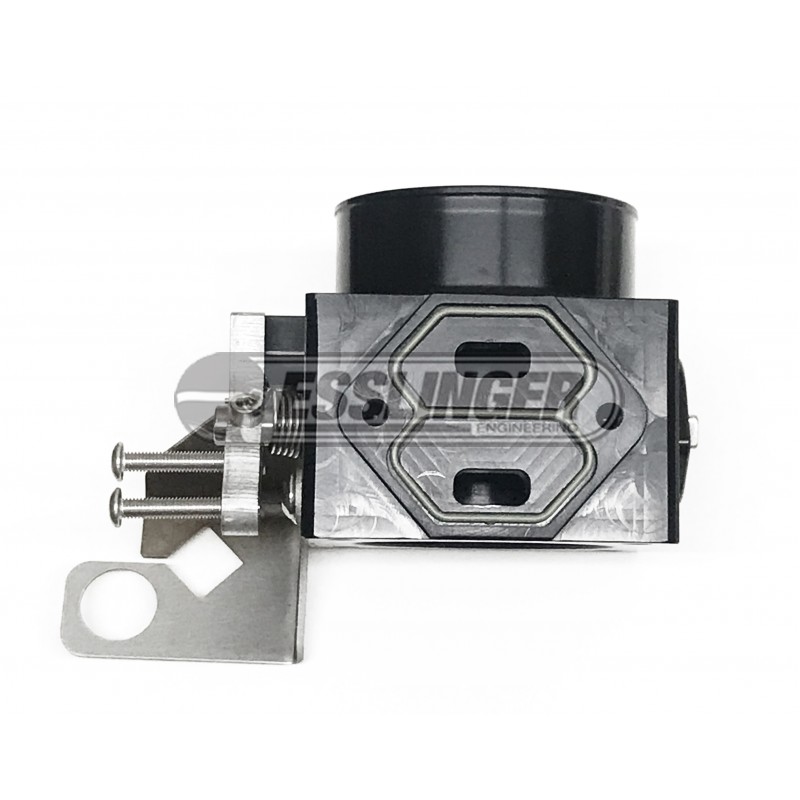

Our Billet Pro-Series 62mm cable actuated throttle body bolts directly onto the 2.0L, 2.3L, & 2.5L Duratec OEM drive-by-wire manifolds (both Mazda and Ford versions) and features built in provisions for a Focus IAC and TPS sensor so nothing additional has to be purchased. All intake systems attach directly to our throttle body just like they would on a OEM Focus throttle body.

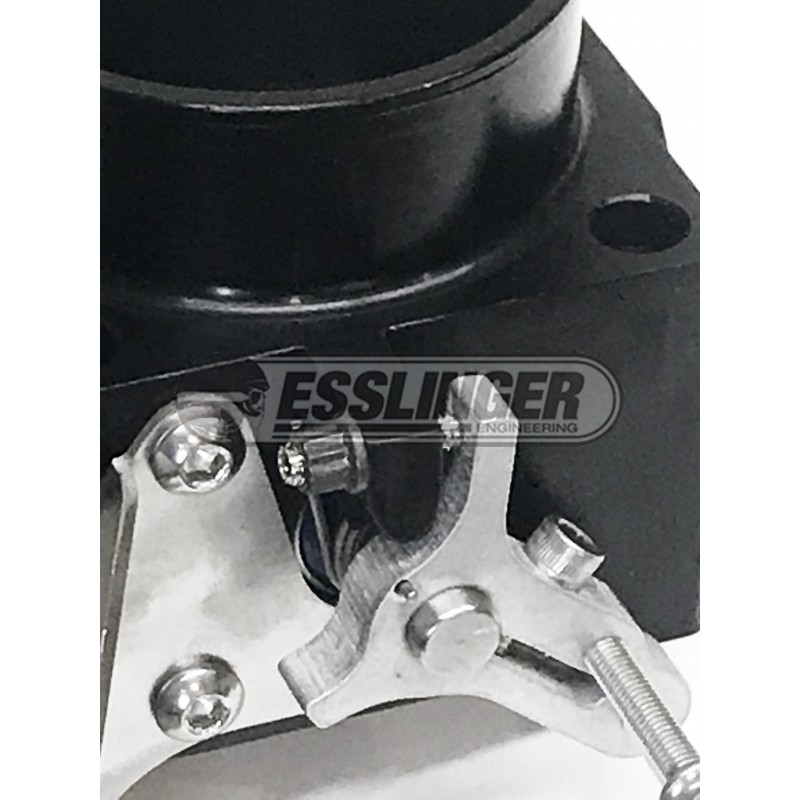

Includes throttle cable bracket and new fasteners!
* First batch of throttle cable brackets are NOT setup for cruise control. In the future we may add provisions to make cruise control usable, but at this time it is not.
