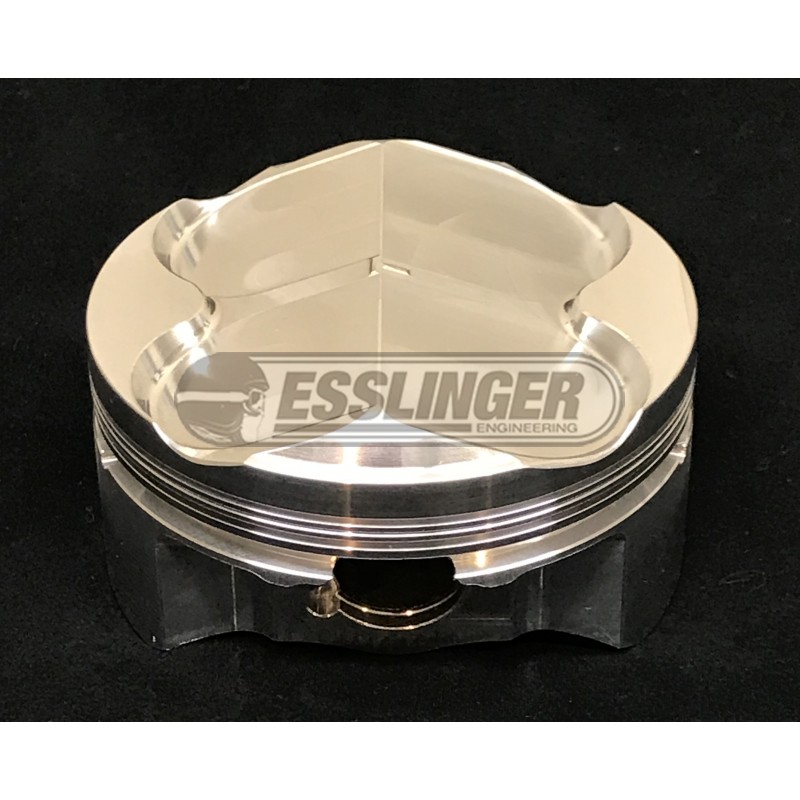

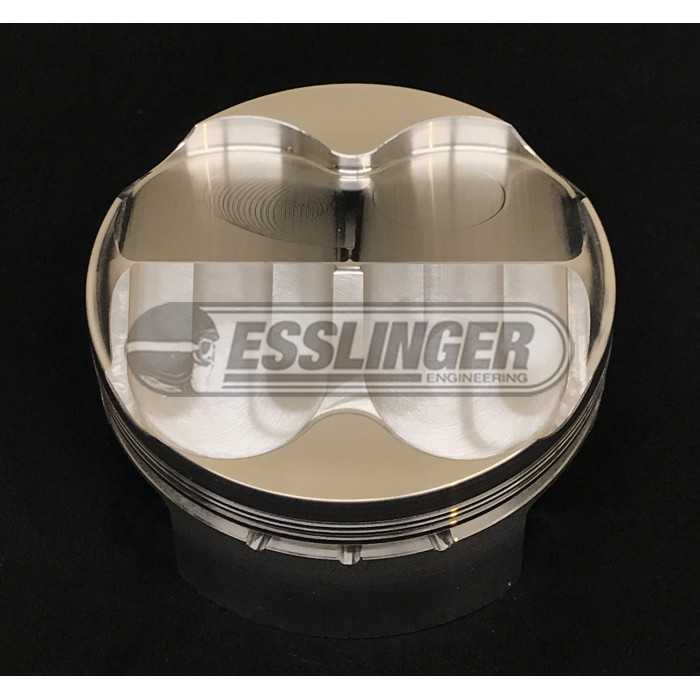

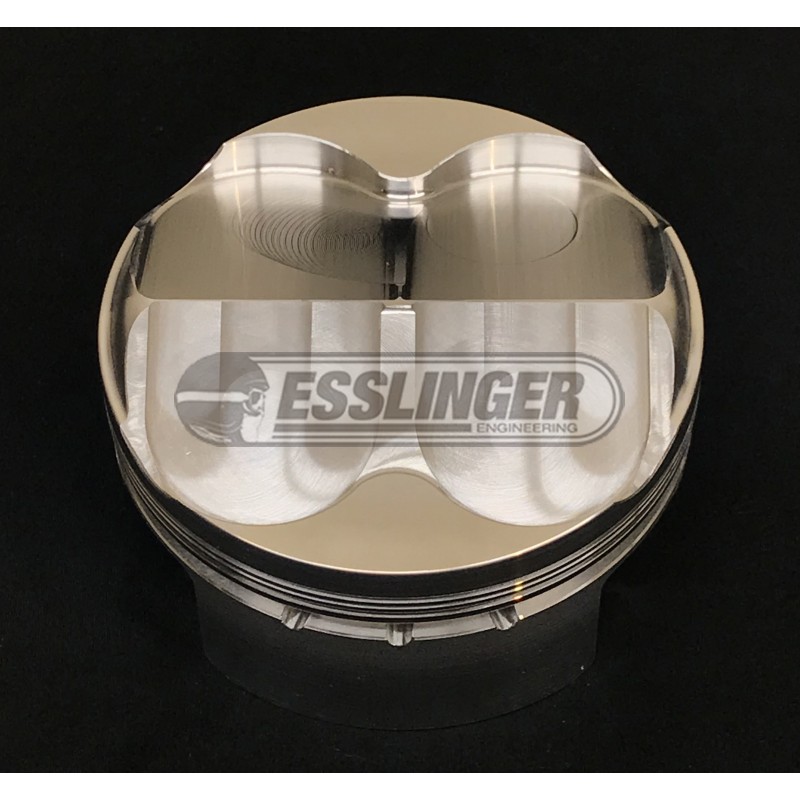

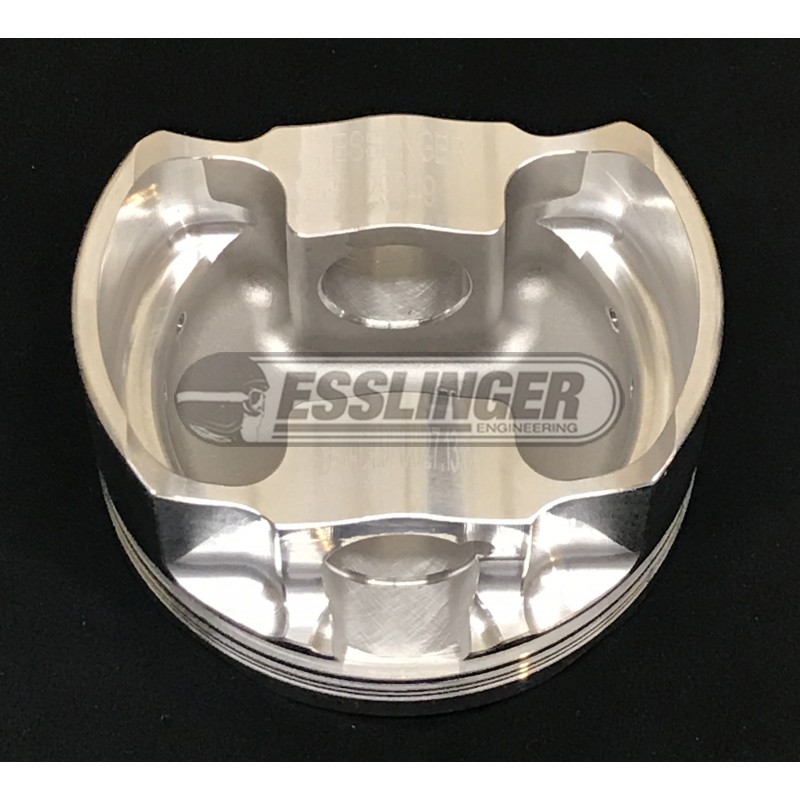

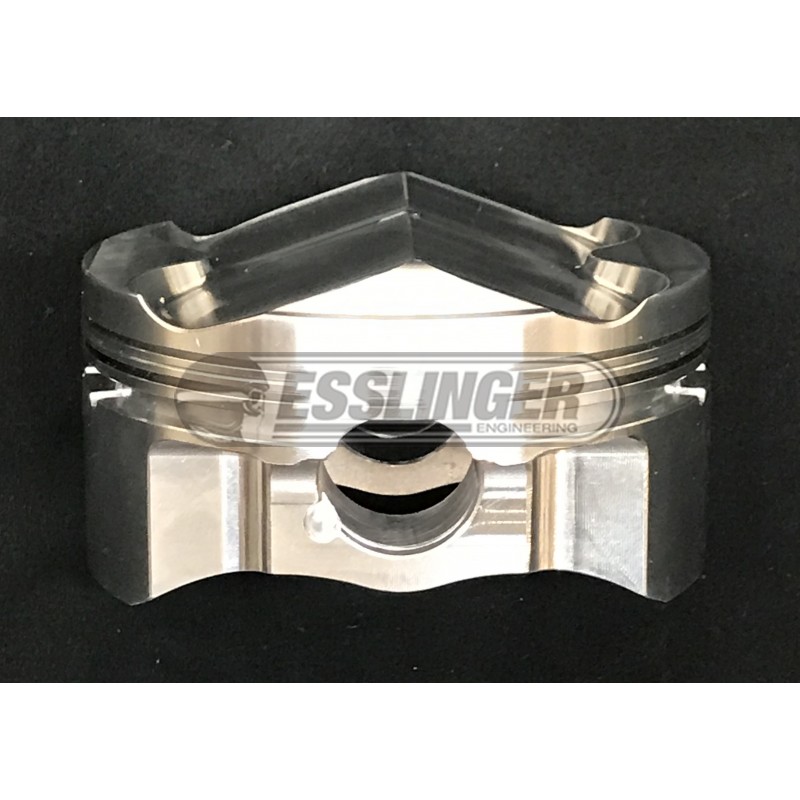

2.0L Duratec "Stroker" Pistons (14.5:1)
$849.99
- Brand: Esslinger Engineering
- Product Code: 2.0L Duratec "Stroker" Pistons (14.5:1)
- Availability: In Stock
This piston set is a replacement for our 2.3L Stroker kits for the 2.0L Duratec blocks!Bore Sizes available: 87.5mm, 87.578mm (our recommendation!), a..
Available Options
This piston set is a replacement for our 2.3L Stroker kits for the 2.0L Duratec blocks!
Bore Sizes available:
87.5mm, 87.578mm (our recommendation!), and 88mm
Valve Reliefs:
Valve Reliefs fit up-to 37.5mm intake valves and 31mm exhaust valves.
Valve relief depths work with all of our cams, even our Stage 5 VCT cams with full range of variable cam function!
*14.5:1 compression pistons have shallower valve reliefs than our four lower compression variants, so they will require limiting of the VCT travel if VCT is used.
Compression Ratio Options:
10.5:1 for Pump Gas normally aspirated, nitrous, and low boost engines
12:1 for big cam Premium Pump Gas or E85 normally aspirated or nitrous engines
13.5:1 for 100 octane or E85 normally aspirated engines
14.5:1 for 110 octane normally aspirated engines
Forged 2618 Piston specs:
Bore: 87.5mm, 87.578mm, or 88mm
Compression Height: .920" (23.368mm)
Piston volume:
14.5cc = +7.5cc *
Wristpin Dimensions: .827" (21mm) x 2.250" x .150" wall
Wristpin retainer type: Wire Loc's
Ring groove dimensions: 1mm, 1.2mm, 2.8mm
Rings sold separately! We offer both NPR nitrided steel file-fit and Total Seal Gapless ring to suit these pistons.
Rings sold separately! We offer both NPR nitrided steel file-fit and Total Seal Gapless ring to suit these pistons.
***Please check with us to see if the pistons you want are in stock before ordering if you are under a time deadline.***
