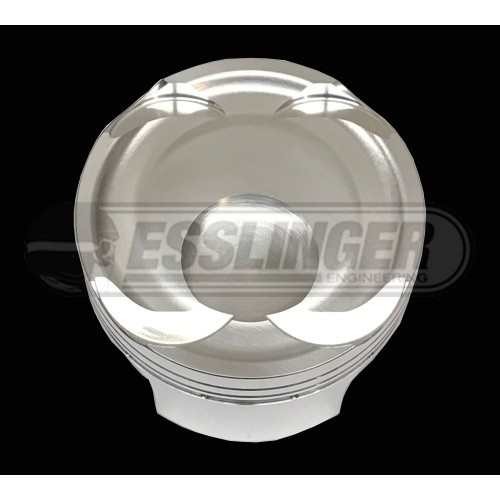

2.3L DISI "Long Rod" and piston kit
- Brand: Esslinger Engineering
- Product Code: 2.3L DISI "Long Rod" and piston kit
- Availability: In Stock
We've developed these long-rod piston kits to reduce cylinderwall loading, and increase reliability of the 94mm stroke 2.3L engines. These engin..
We've developed these long-rod piston kits to reduce cylinderwall loading, and increase reliability of the 94mm stroke 2.3L engines. These engines come from the factory with really short 5.925" rods that equates to a relatively short 1.60:1 rod/stroke ratio. We've gone with a 6.136" (+6.6mm) length rod, and shorter 1.050" compression height piston to reduce the stress on the rods and crank. Most of the other options on the market are tailored around the OEM rod length because that's what is commercially available, not what's best. They will tell you that you don't want to use a shorter piston because it requires an oil ring rail, but for 20 years the aftermarket has proven that there is no durability drawback. The reason the OEM's don't use oil ring rails is because they are an added cost, and require a small amount of additional time during install (both of those cost less than $5/set, but over 100's of thousands of engines that adds up to millions of dollars saved by the OEM for not using them). Our motto on stuff like this has always been, "If it's worth doing, it's worth doing right"! We don't worry about saving $10 when there is a proven performance gain at stake!
Bore Sizes available: 87.5mm, 87.55mm (our recommendation!), and 88mm
Valve Reliefs fit up-to 36mm intake valves and 32mm exhaust valves.
Valve relief depths work with all of our cams, even our Stage 4 DISI cams with full range of variable cam function!

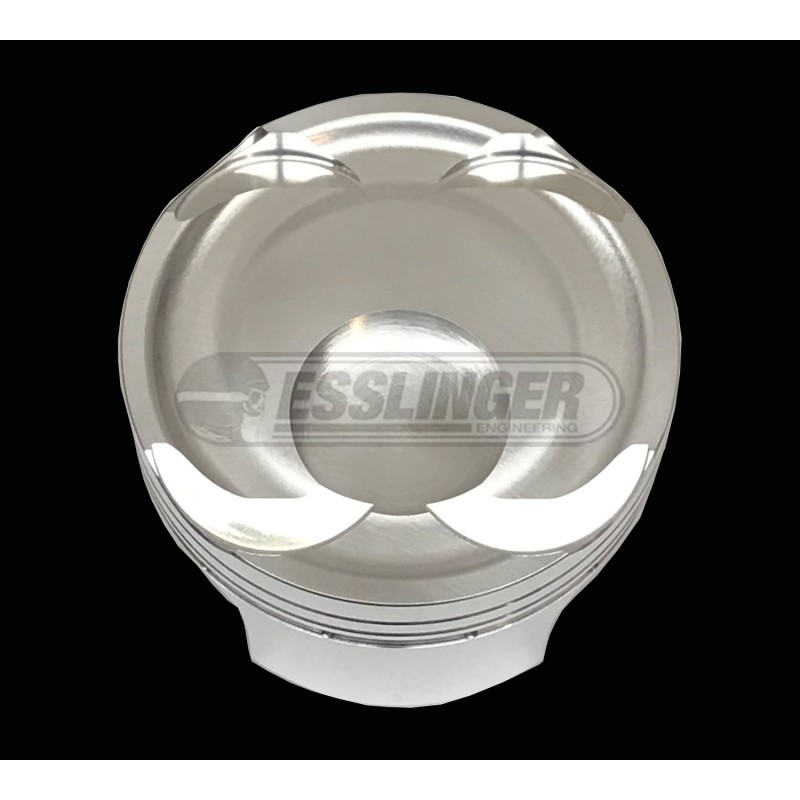

Forged 2618 Piston specs:
Bore: 87.5mm, 87.55mm, or 88mm
Compression Height: 1.050" (27.432mm)
Compression Ratio/ Piston volume: 9.5:1/ -6cc
Wristpin Dimensions: .886" (22.5mm) x 2.250" x .230" wall 9310 (Extreme Duty material) Steel
Wristpin retension type: Wire Loc's
Ring groove dimensions: 1mm, 1.2mm, 2.8mm

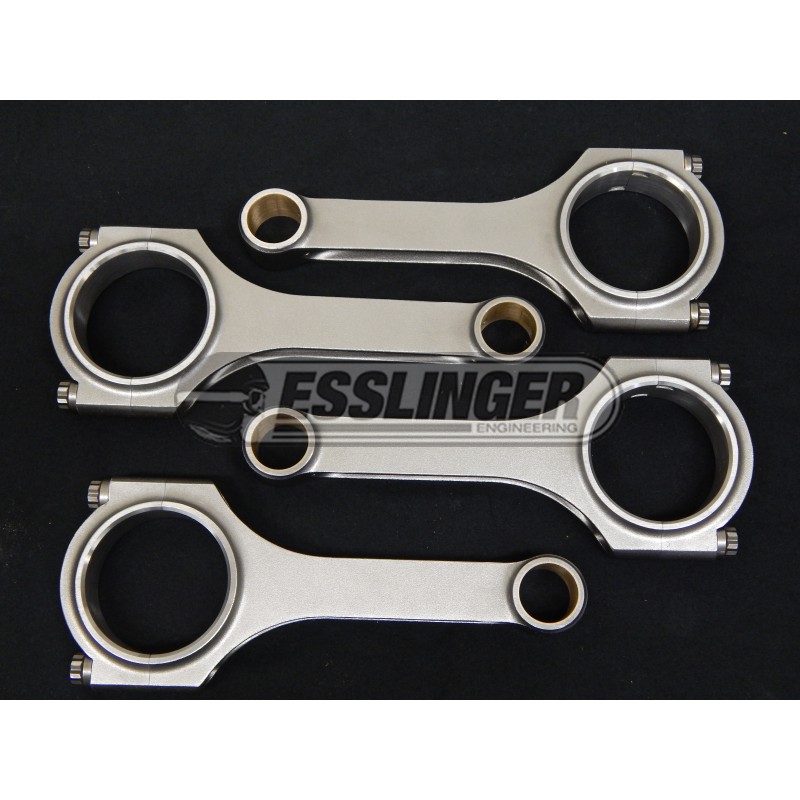

Length: 6.136" (155.85mm)
Big-End Housing: Standard DISI w/ bearing tang slots
Wristpin housing: Standard DISI
Bolts: 3/8" ARP2000 or CA 625+ (optional upgrade)

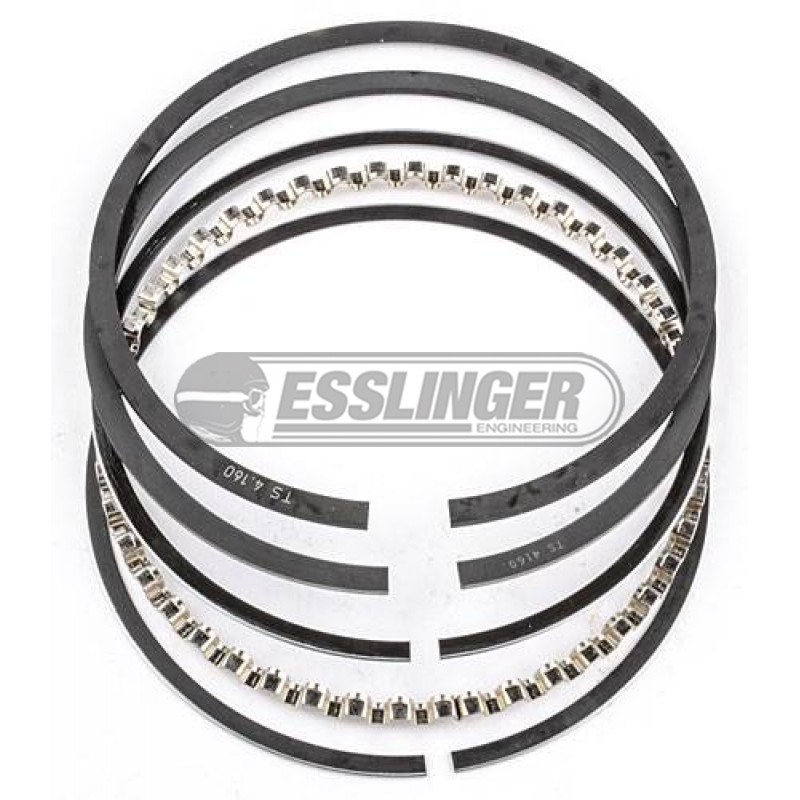

Available ring options:
Gas nitrided File-fit ring set
Total Seal AP Gapless top, Napier 2nd, 3pc. oil ring set
*** As with any of our specialty pistons, these Long Rod & Piston kits take 2-3 weeks to manufacture the pistons from the date the order is placed. ***
