2336cc Ford 2300 SOHC N/A Shortblocks
- Brand: Esslinger Engineering
- Product Code: Ford 2300 SOHC 2336cc N/A Shortblocks
- Availability: In Stock
Our shortblocks are assembled by the same technicians that build our race and championship winning engines. Each shortblock is built in an OEM F..
Available Options

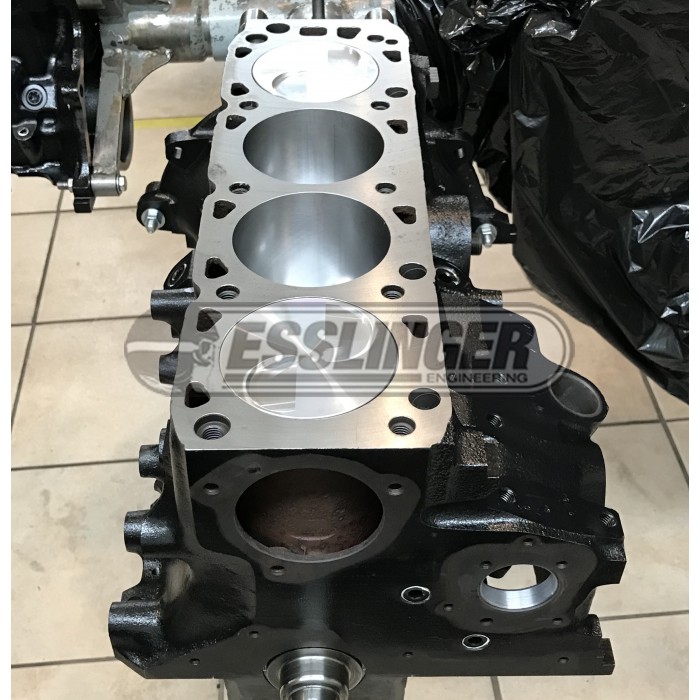

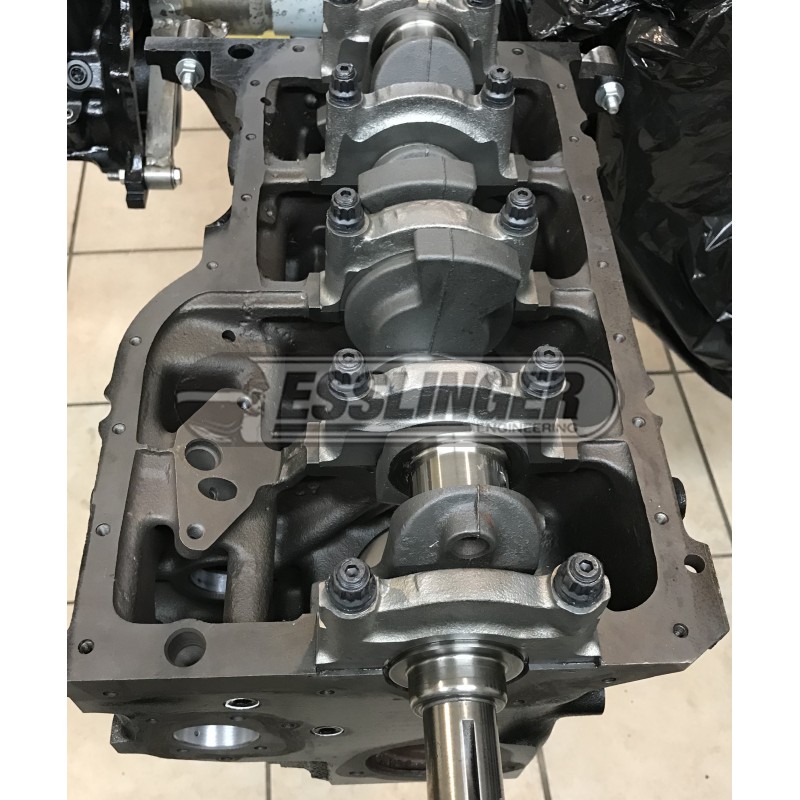

Our shortblocks are assembled by the same technicians that build our race and championship winning engines. Each shortblock is built in an OEM Ford block that has been thoroughly inspected, magnafluxed, de-rusted, cleaned, and fully machined to our exacting specifications in our shop. Each of the 3 stages has parts that have been carefully chosen because of their performance AND durability. All cylinder honing is performed using our diamond tooling while a custom made torqueplate is torqued to 90ft.lbs using ARP headstuds. The main bearing housings are alignhoned with ARP mainstuds torqued to 90ft.lbs. to verify everything is straight and perfectly sized. The block is machined to a 8.355" deck height to get the pistons to zero deck* at TDC for maximum legal performance. Our technicians install new brass freeze plugs new front & rear oil galley plugs, and paint the block before assembling the rotating assembly. Bearing clearances are individually checked and adjusted to fit within our exacting tolerances as are the piston to cylinder, and ring gaps. Rod bolts are tightened to match ARP's recommended stretch range, not just "torqued" in place. Each block has a set of our machined intemediate shaft bearings installed, and is shipped on custom fabricated engine stands inside a protective plastic shipping crate at no additional charge!
Recommended maximum rpm for each "Stage":
Stage 3: 8400rpm on dirt, and 8000rpm on asphalt
Stage 4: 8800rpm on dirt, and 8400rpm on asphalt
Stage 5: 9200rpm on dirt, and 8800rpm on asphalt
Below are some lists that show the different parts used in each "Stage":
Stage 3:
Fully machined OEM block
Heat-treated reground OEM 2300 crankshaft
3.810" bore lightweight forged 4032 Racetec flat-top pistons (-2.2cc)
Manley Sportsmaster I-beam 5.7" rods
ARP mainstud kit
Clevite "77" Main Bearings
Clevite "77" Rod Bearings
Esslinger Machined intermediate shaft bearings
Stage 4:
Fully machined OEM block
Heat-treated reground OEM 2300 crankshaft

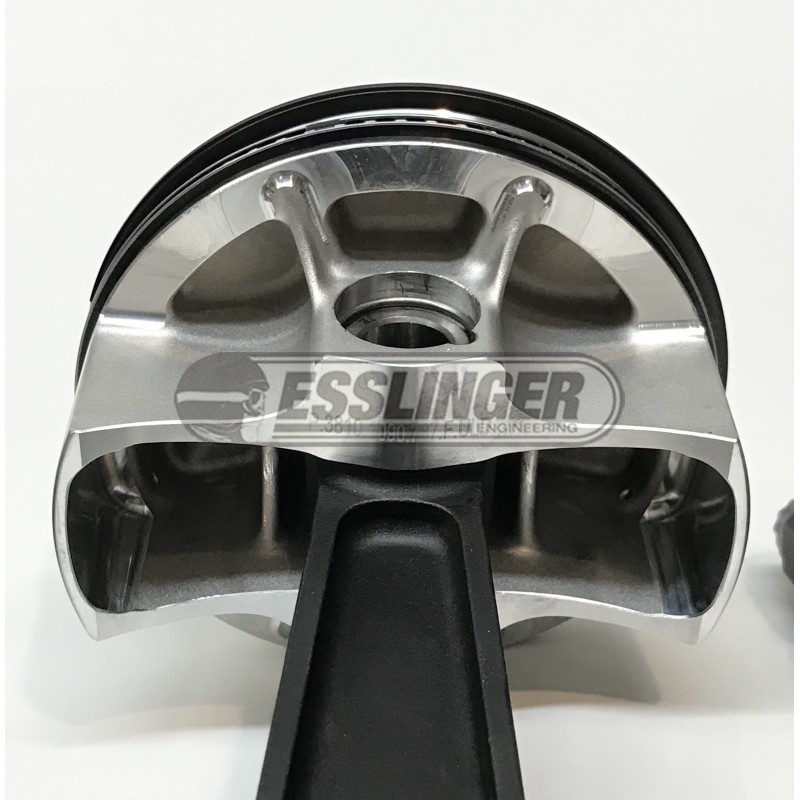

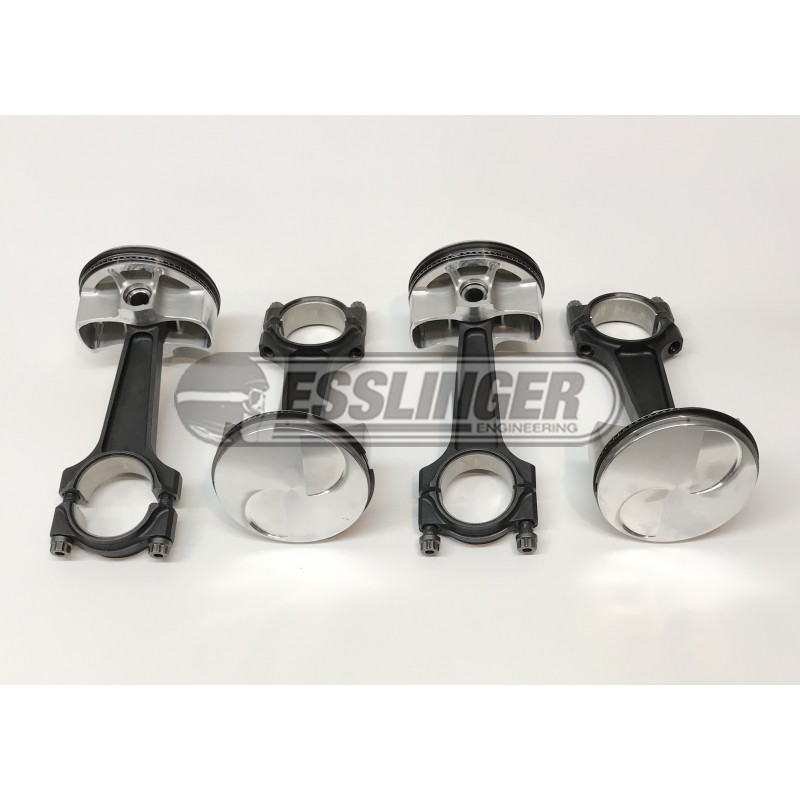

3.810" bore Boxed, & gas-ported flat-top JE pistons (-2cc)

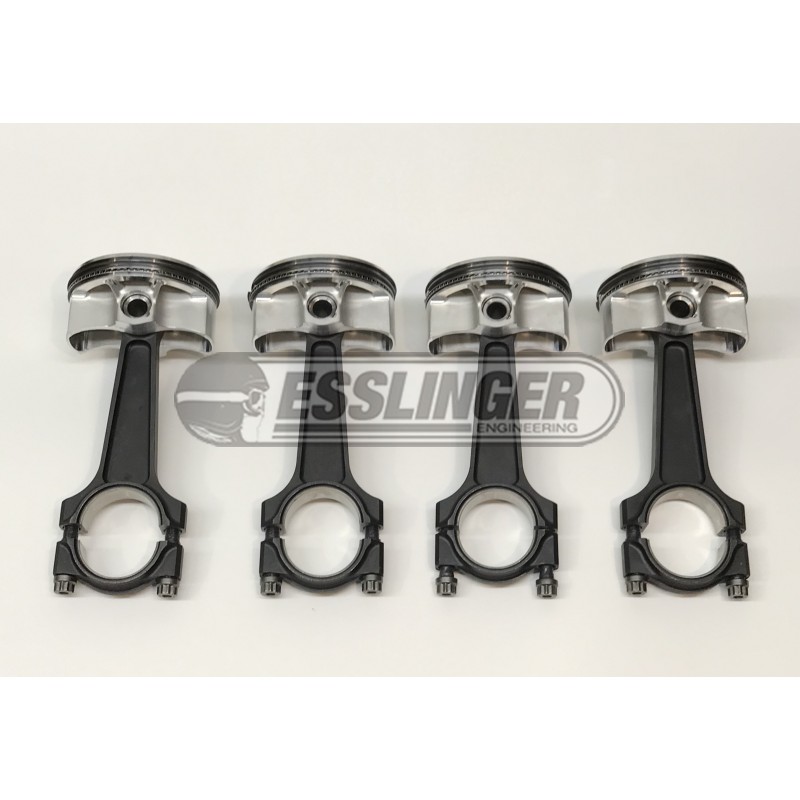

Ultra-Lite Billet I-beam 5.7" rods (~460g)
ARP mainstud kit
Clevite "77" Main Bearings
Clevite "77" Rod Bearings
Esslinger Machined intermediate shaft bearings
Stage 5:
Fully machined OEM block
Billet Ultra-Lite pendulum cut crankshaft
3.810" bore Boxed, & gas-ported flat-top JE pistons (-2cc)
Ultra-Lite Billet I-beam 5.7" rods (~460g)
ARP mainstud kit
Clevite "77" Main Bearings
Clevite "77" Rod Bearings
Esslinger Machined intermediate shaft bearings
