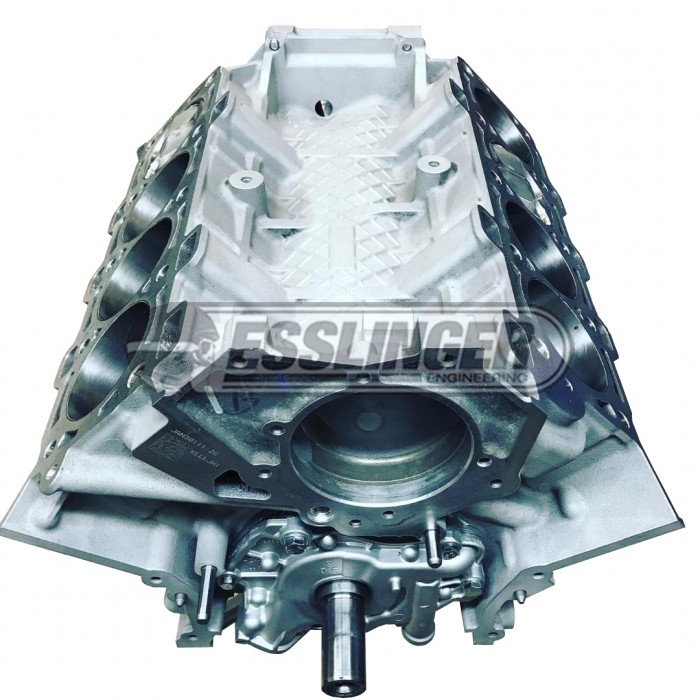

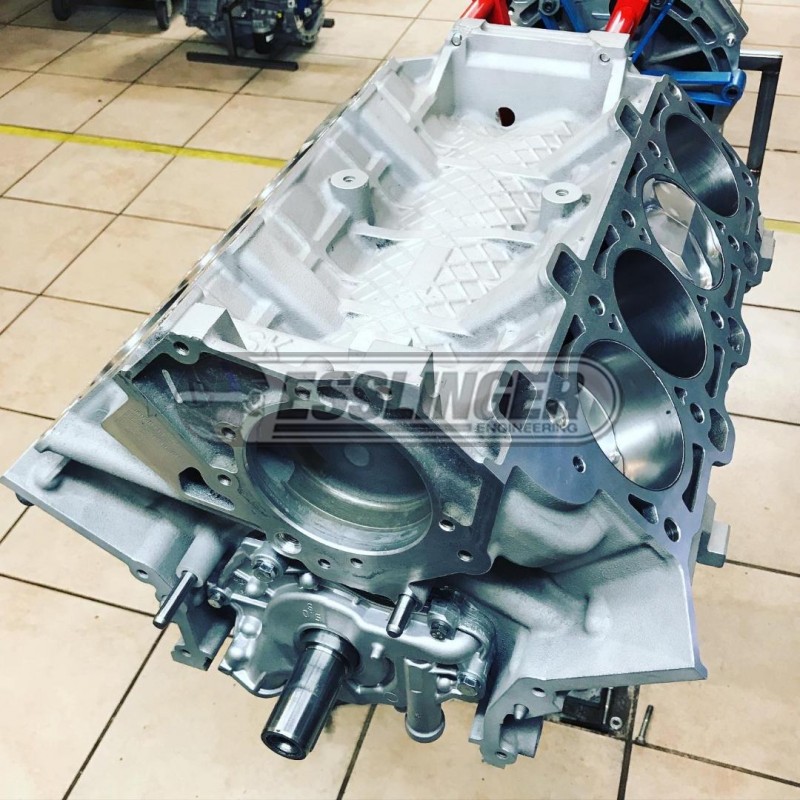

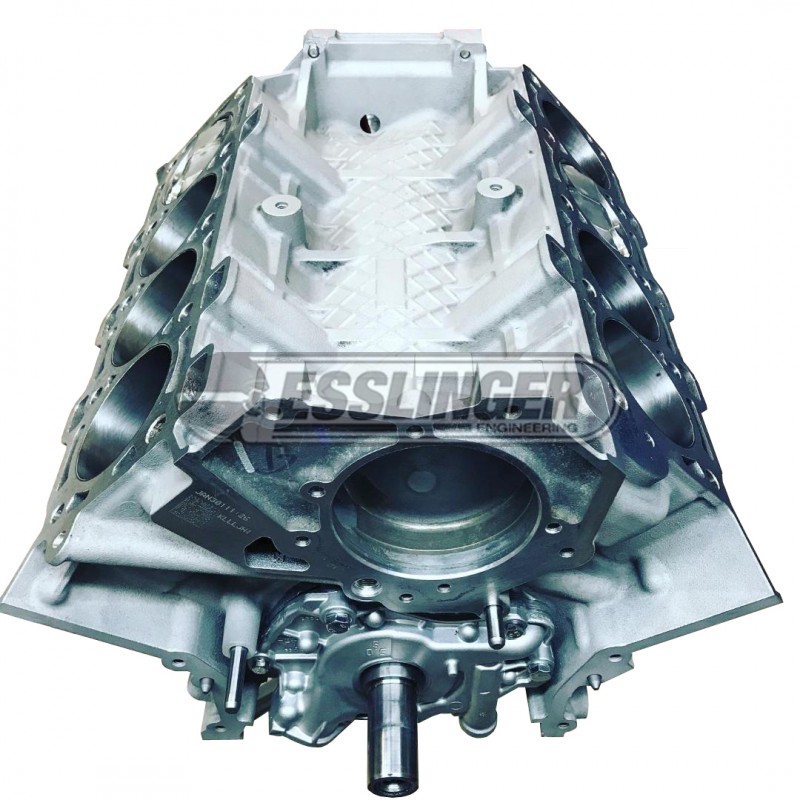

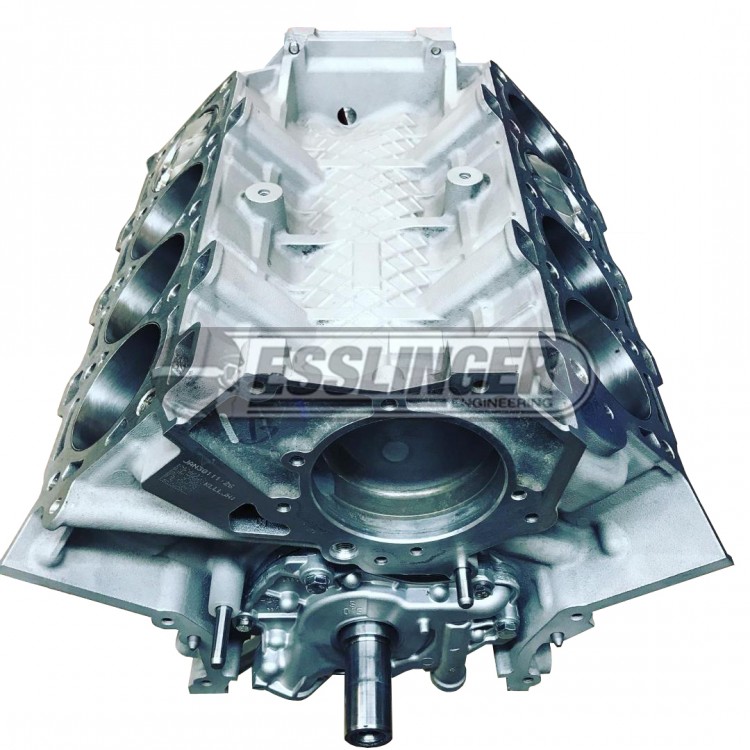

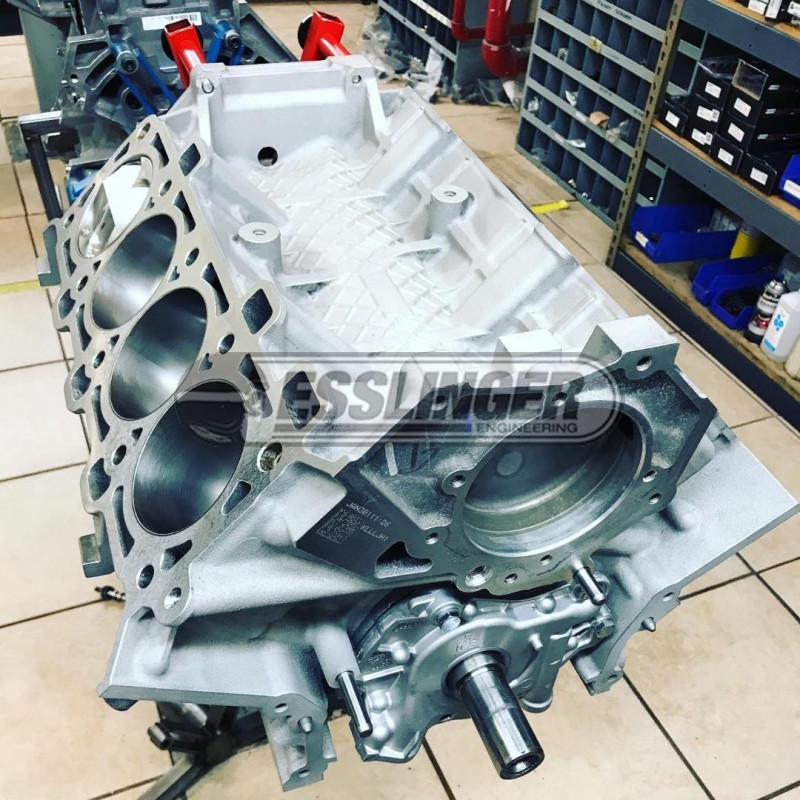

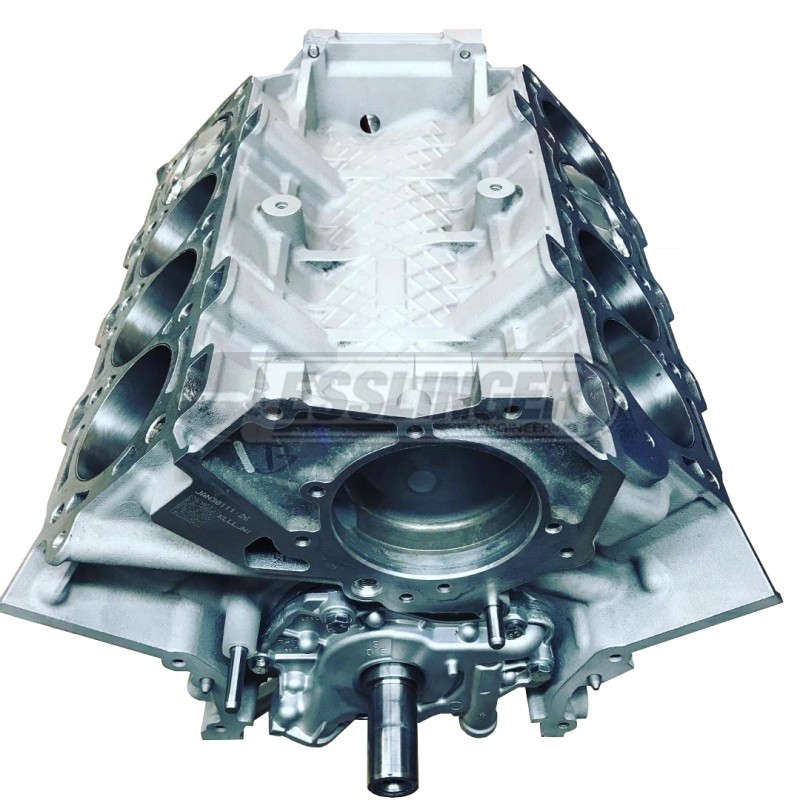

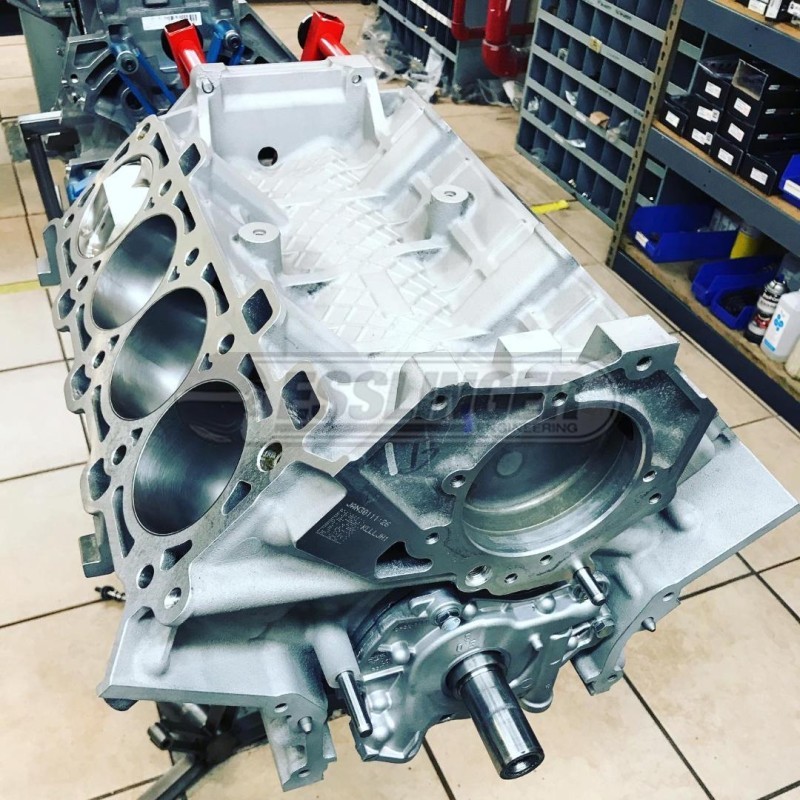

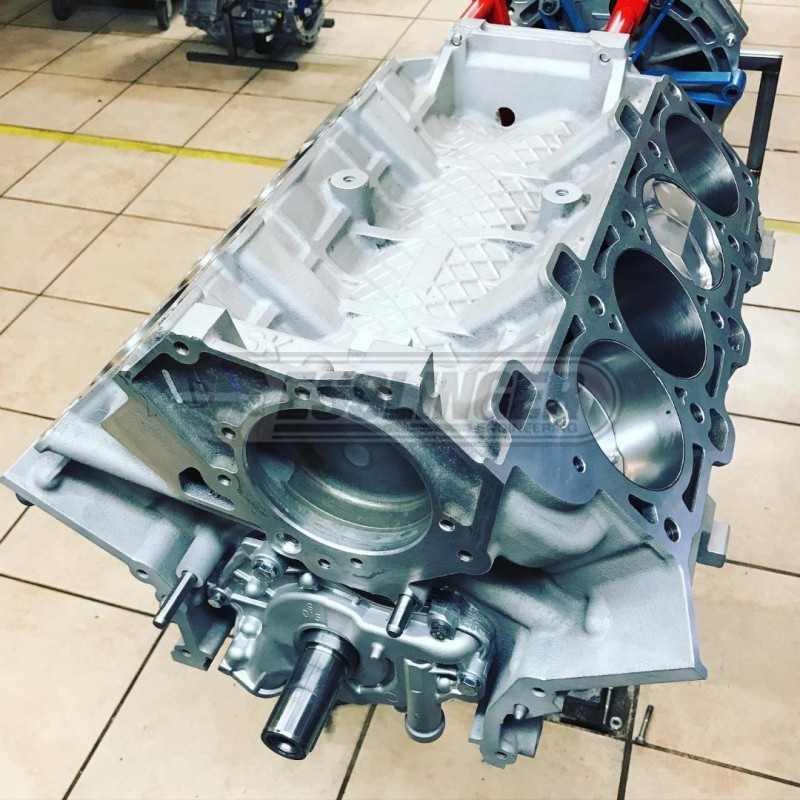

Forced Induction Coyote Shortblock
- Brand: Esslinger Engineering
- Product Code: Forced Induction Coyote Shortblock
- Availability: In Stock
Choose from 2 different power rating options to suit your specific needs. All our Coyote shortblocks are assembled by the same technicians that ..
Available Options
Choose from 2 different power rating options to suit your specific needs. All our Coyote shortblocks are assembled by the same technicians that build our race winning engines. We take the same level of detail and care when assembling each shortblock regardless of the power level or application. Each shortblock package has parts picked out to work the best in each given application. It's easy to choose which shortblock will fit your needs best, just pick the one that has a higher power rating than the level of power you want to make!
Power Options:
Under 1000hp (includes H-beam rods, forged 11:1 pistons, Total Seal rings, 12mm headstud upgrade, w/o sleeves)
Upto 1600hp (includes Billet I-beam rods, HD 11:1 pistons, Total Seal rings, 12mm headstud upgrade, w/ HD sleeves)
Oilpump Options:
No pump = you'll supply a pump
Billet Oil Pump = New OEM oil pump installed with billet oilpump gear upgrade
Billet Oil Pump & Crank Gears = New OEM pump installed with billet oilpump gear upgrade & billet crank timing gear
*** All forced induction shortblocks feature hand selected race series
main & rod bearings and ARP main stud kit ***
As with all our shortblocks, and complete engines, we start with a thorough block inspection looking for imperfections, and measuring critical dimensions before completing the following modifications:
Tap front and rear oil galleys for -6AN & -10AN O-ring plugs (replacing the OEM push-in freeze plugs)
Surface Block deck square to crank centerline
Install ARP Main Stud Kit
Align hone main tunnel to size as needed
Machine for 12mm extra deep HD head studs and install studs for torque plate (stud kit hardware available separately)
Torque Plate Hone cylinders to the correct surface finish & clearance for our 3.650", 3.700" bore HD forged pistons
Deburr all interior and exterior surfaces
Preliminary wash to remove machining chemicals & chips (not to replace final wash before assembly)
Measure all critical dimensions as Quality Control (bore, deck height, main housing bore dia., & cylinder surface finish)
Debur and hand finish piston tops for reduced hot spots that lead to detonation
Balance rotating assembly
Final wash all components for final assembly
Measure & set bearing clearances
Install crankshaft in block
File-fit Total Seal Rings to set ring end gaps for each individual cylinder
Install pistons on rods, rings on pistons, and rod/piston/ring assemblies into block
Torque all rod bolts to the specified bolt stretch
Measure piston to deck clearance
Additional parts included:
Includes new Head Dowels
Includes new Bellhousing Dowels
Includes new piston squirters
Includes new o-ringed and threaded -6AN front & -10AN rear oil galley plugs
Please note, all Coyote shortlbocks are built to order which takes 4-6 weeks from the date of the order.
